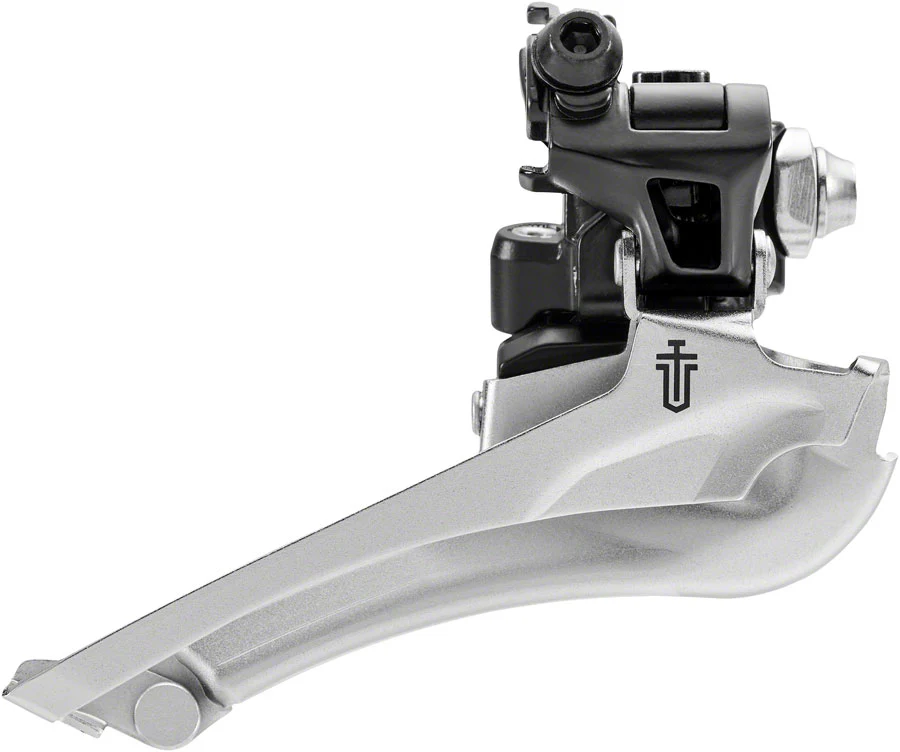

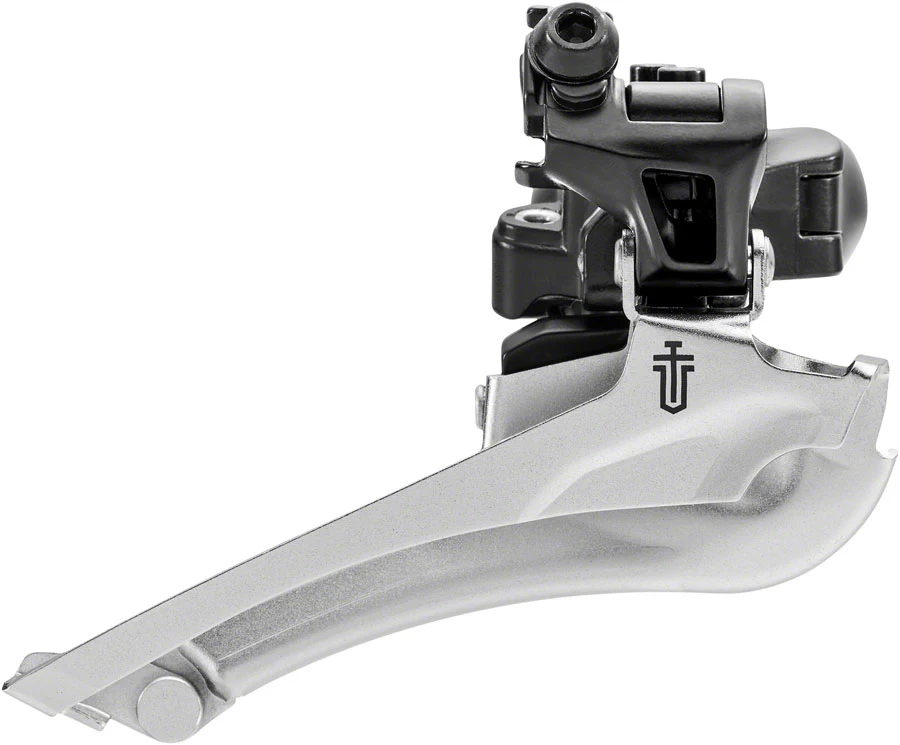

The Sword Black front derailleur is designed for a 9 speed chain width and a wide range chainring. If you set it up with a full housing run it features the same easy cable tension adjustment as the original Sword group.
Compatible with wide spec 47mm chainline cranks onlyMinimum 46t outer chainringMax 52t outer chainringAluminum outer linkDown pull style front derailleur
| Double or Triple |
Double |
| Drivetrain Speeds |
9 |
| Front Derailleur Clamp |
28.6 (1-1/8"), Braze-on |
| Front Derailleur Cable Pull |
Bottom Pull |
| Max Ring (teeth) |
52 |
| Front Derailleur Style |
Traditional |
| Weight |
110 |
| Crank-FD Type |
Road Double |
| Derailleur Capacity |
17 |
