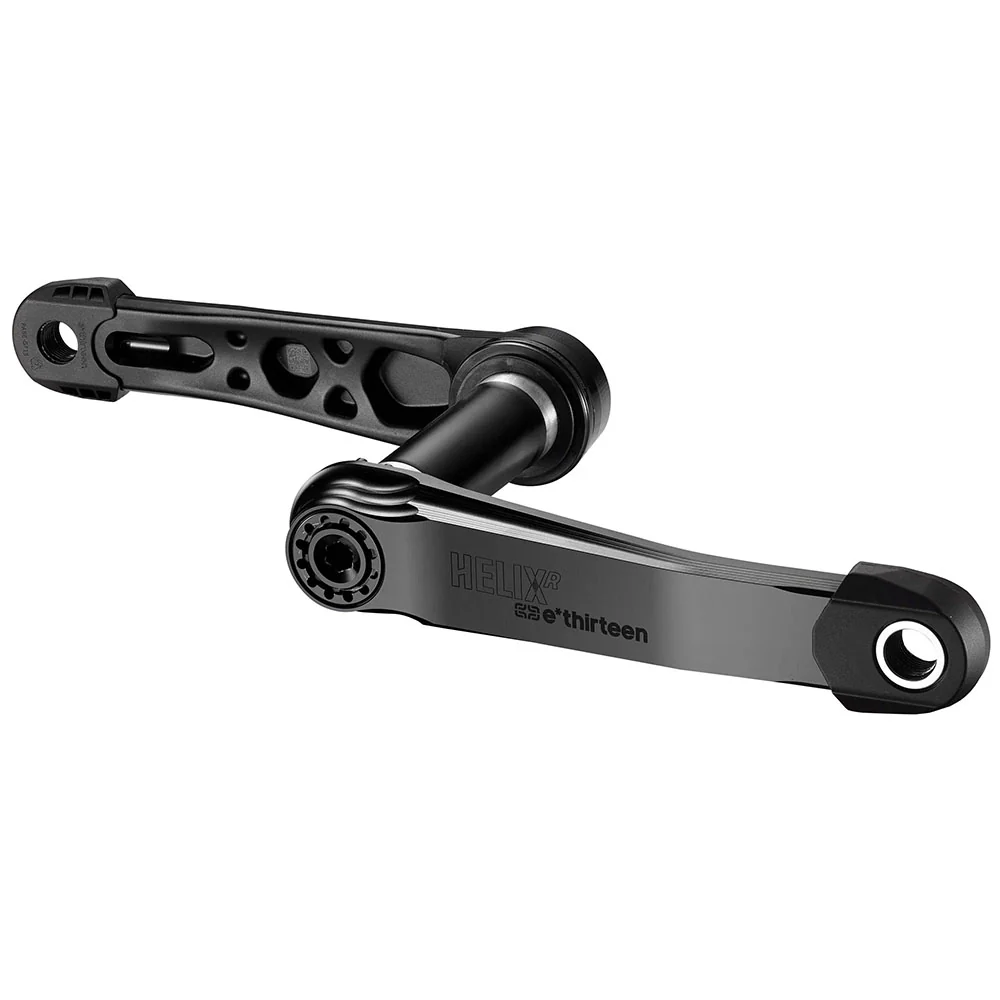

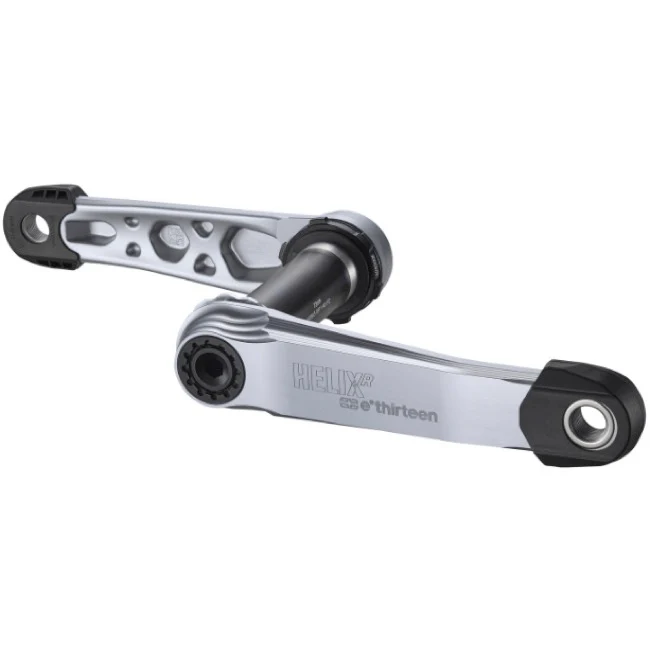

E*thirteen Helix R Cranks
- Spindle is on the non-drive side of the crank for easier chain guide setup and drivetrain maintenance
- Adjustable chainline accommodates non-Boost (142mm), Boost (148mm) and Super Boost (157mm)
- Now includes an 8mm self-extractor, meaning the cranks can be removed with nothing more than an 8mm allen key
- Lightweight aluminum trail crank arms and aluminum spindle w/ Quick Connect lockring and Adaptive Preload Adjuster (APS), compatible with all Quick Connect Guiderings
- Crank arm and chainring/BB removal tool included
| Model | Helix R |
| Length | 160mm, 165mm |
| Direct Mount/BCD | QuickConnect (E*Thirteen) |
| Configuration | 1x |
| Spindle Interface | 30mm |
| BB Shell Width | 73mm |
| Chainline | 52mm |
| Material | Aluminum |
| Color | Black, Bronze, Silver |
- Spindle is on the non-drive side of the crank for easier chain guide setup and drivetrain maintenance
- Adjustable chainline accommodates non-Boost (142mm), Boost (148mm) and Super Boost (157mm)
- Now includes an 8mm self-extractor, meaning the cranks can be removed with nothing more than an 8mm allen key
- Lightweight aluminum trail crank arms and aluminum spindle w/ Quick Connect lockring and Adaptive Preload Adjuster (APS), compatible with all Quick Connect Guiderings
- Crank arm and chainring/BB removal tool included
| Model | Helix R |
| Length | 160mm, 165mm |
| Direct Mount/BCD | QuickConnect (E*Thirteen) |
| Configuration | 1x |
| Spindle Interface | 30mm |
| BB Shell Width | 73mm |
| Chainline | 52mm |
| Material | Aluminum |
| Color | Black, Bronze, Silver |
Select Length
Select Color
From $97.65
Original: $279.00
-65%E*thirteen Helix R Cranks—
$279.00
$97.65Description
- Spindle is on the non-drive side of the crank for easier chain guide setup and drivetrain maintenance
- Adjustable chainline accommodates non-Boost (142mm), Boost (148mm) and Super Boost (157mm)
- Now includes an 8mm self-extractor, meaning the cranks can be removed with nothing more than an 8mm allen key
- Lightweight aluminum trail crank arms and aluminum spindle w/ Quick Connect lockring and Adaptive Preload Adjuster (APS), compatible with all Quick Connect Guiderings
- Crank arm and chainring/BB removal tool included
| Model | Helix R |
| Length | 160mm, 165mm |
| Direct Mount/BCD | QuickConnect (E*Thirteen) |
| Configuration | 1x |
| Spindle Interface | 30mm |
| BB Shell Width | 73mm |
| Chainline | 52mm |
| Material | Aluminum |
| Color | Black, Bronze, Silver |
